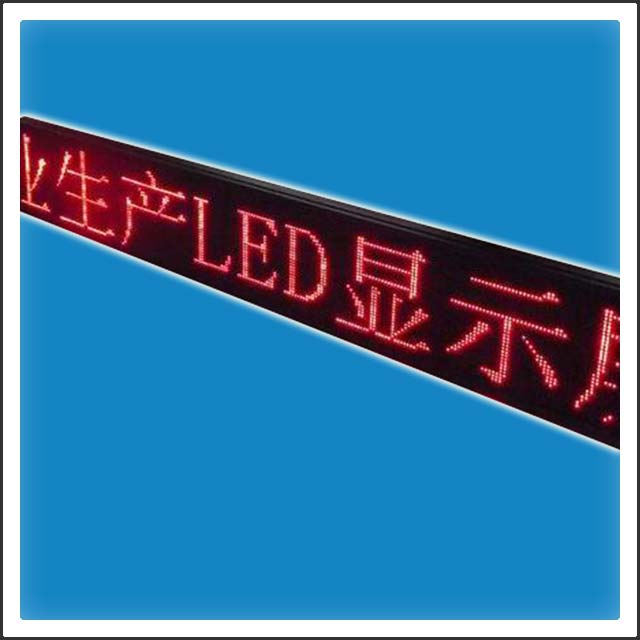

Smart Sign, All Messages Are Programmable
> For the sign, all the messages played are programmable. Clients can edit the right wanted messages and transmit them to the sign easily. And there is large memory space for the sign to save over 100 pcs of different messages.
> And the sign can also be divided into some zones to play different messages at the same time.
Rich Options for Data Transmitting
> There are many different data ports optional for data transmitting, WIFI connection, USB port, LAN port, RS233, RS485, GPRS, GSM, 3G, etc. Some are convenient for end user operating, some are necessary for project using.
> And the controlling is a kind of offline mode. After the right data is transmitted, the data connection can be cut. And it won’t affect the sign playing.
All World Languages Are Supported
Clients don’t need to worry about the local minority languages. Because all the languages can be played on the sign, as long as it can be typed in computer, or can be made as a graphic file, such as .bmp file.
Smart Phone Controlled, Both Android & IOS Available
The sign can be connected to a smart phone by WIFI connection. Messages can be sent to the sign by the smart phone, no matter it is an Android phone or iphone.
High Quality LEDs
DIP 546 LEDs, large size LED chip 9 mil, high brightness & low attenuation, making sure the sign is bright enough to read even facing to the sun. Good performance, stable & reliable
Aluminum Frame Housing, Slim & Light Body
The sign is made as aluminum frame housing. It is only 55mm depth. And the net weight of a 16x96 dots sign is less than 4KG/pc. The slim & light body makes that it is easy to install & remove the sign.
And the installing brackets are offered together with the sign.
Customized Sizes & Requirements
Kinds of clients’ special requirement are acceptable. Such as special size of the sign, double sided sign, logo printing, open communication protocol & SDK, DC power input (vehicle power, solar power, etc.), etc.
> used as banner sign for kinds of store, shop, service station, sentry box, etc. in the show window
> used as billboard sign in kinds of mall, super market, department store, grocery store, etc.
> used as notice board in kinds of public area, such as park, zoo, city square, playground, cinema, bus / railway / station, airport, social community, company workshop, office, etc.
> used as direction sign board in large car park, museum, playground, railway station, airport, service station, hospital, etc.
> used as special sign docking with other devices, such as vending machine sign, ATM sign, workshop machine sign, etc.
| Model No. || HTS-SD10-16XX |
| Pixel Pitch || 10mm |
| Pixel Density || 10,000 dots/sqm |
| Module Size || 320 x 160mm |
| Module Resolution || 32 x 16 pixels |
| Displaying Color Available || Single Color: red, green, blue, yellow, white, etc. |
Tri Color: red, green & yellow / red, blue & purple
7 Colors: red, green, blue, yellow, purple, cyan & white
| Displaying Height || 160mm, 6 inches |
| Displaying Length Available || 640mm, 960mm, 1280mm, 1600mm, 1920mm, etc. as clients’ requirement |
| Housing Material || Aluminum frame |
| Brightness || Different brightness for different display color models, but the brightness of every color is bright enough to read, even the sign facing sunlight |
| Brightness Controlling || 16 levels of brightness adjustable |
| Protection || IP43, no water proof, for indoor and show window use |
| Power Input || AC110V 60HZ / AC220V 50HZ, 10% more or less |
| Working Temp. || -30 Celsius ~ +50 Celsius |
| Working Humi. || 10% ~ 90% |
| Maintenance || Rear access, replace fault components |
| Data Transmitting || WIFI connection, USB port, LAN port, RS232, RS485, GPRS, GSM, Infrared remoter, etc. optional |
| Language Supported || All world languages are supported |
| Playing || Programmable messages, time, date, temp (optional), graphic |
| MTBF || > 3000 Hours |
| LED Life Span || 50,000 Hours |
| Any other clients’ customized requirement, please contact us at email@example.com without any hesitate. |
| The parameters are for reference only. There will be a little difference due to different hardware disposition. All rights are reserved to Hangel Technology |
