Physical
Parameters | Parameters | Value |

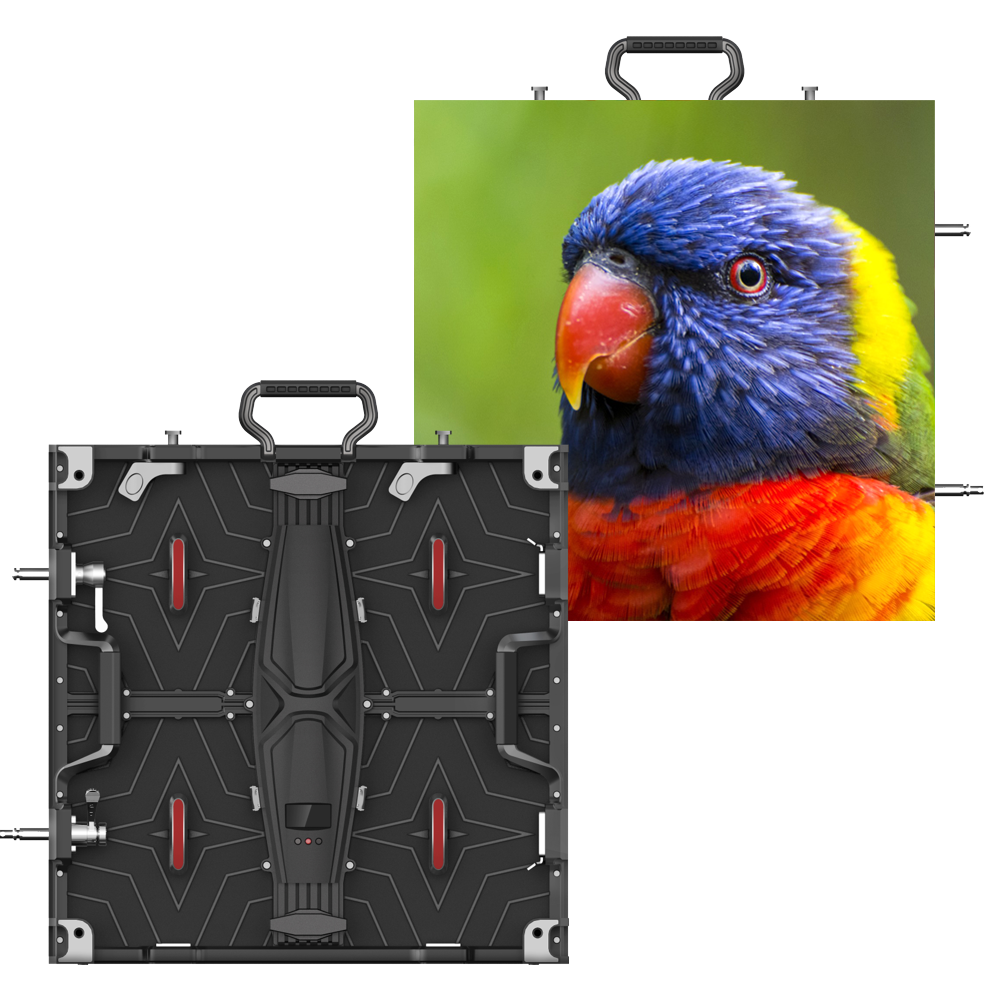

Product | P1.5-16S LED Display for Virtual Set |
Model | P1.5 |
Pixel Pitch | 1.5625mm |
Product Code | HTF-IDP1.5-16S-XRJII500 |
LED Type | SMD1212, 1R1G1B (Nationstar) |
Pixel Density | 409,600 pixels/sqm |
Module Size | 250mm x 250mm |
Module Resolution | 160 x 160 |
Module Structure | Magnetic Module, front service |
Cabinet Size | 500 * 500 * 85mm 19.69" x 19.69" x 3.35" |
Cabinet Resolution | 320 W * 320 H |
Cabinet Material | Die Casting Aluminum Cabinet |
Cabinet Weight | 7.5KGS/Cabinet, 15.3lbs/Cabinet |
Cabinet Structure | modular design, fully front serviceable |
Flatness | <1mm |
Photoelectric
Parameters | Brightness | 1200 nits |
Brightness Uniformity | 98% |
Driving Mode | 1/16 scan, constant current driving |
Refresh Rate | high refresh 7680HZ |
Viewing Angle | H & V 160 degree |
Grey Scale | ≥20 bits |
Contrast Ratio | ≥5000 ： 1 |
Color Temperature | 6500K-12000K adjustable, step 100K |
Pixel Failure Rate | ≤ 8PPM |
Input Voltage | AC110V ~ 240V, 60HZ/50HZ |
Power - Max/Average | 180W / 65W |
Application
Parameters | Storage Temp. | -40 to 70 ℃ |
Storage Humidity | 10% to 90% |
Working Temp | -30 to 50 ℃ |
Working Humidity | 10% to 90% |
Installing & Service | hanging, stacking & fully front serviceable |
IP Rate | IP21, no waterproof |
MTBF | >10,000 Hours |
LED Life | 100,000 Hours |
