P3 LED Display Panel for Stage, Events, Ceremony

SMD2121, black LEDs, high contrast ratio, Standard cabinet size 500 x 500mm Thin & light body, accurate size, easy for assembling, dismantling, packing & removing CE, CCC, FCC, RoHS certificated 2 years warranty
  • P3

  • HANGEL

  • HTF-RID3

Availability:

Special Designed Aluminum Cabinet, Lighter, Thinner & More Accurate

The cabinet is special designed die casting aluminum cabinet, with thinner body, lighter weight. The depth of the cabinet is only 80mm, and the weight is only 10KG/cabinet.

Considering the cabinet is die casting made, the size is much more accurate to assemble a seamless perfect whole screen, even for very thin pixels as 2mm, 2.5mm, even thinner.

With Fast Lock, Dowel Pin Lock, Strengthening Rib, Easy Assembling & Dismantling

The light cabinet body with fast lock & dowel pin lock ensures the screen assembling, dismantling, packing & removing are easy. One man can be capable of doing the job. The cabinet is born for rental market.

High Quality LEDs

SMD2121 black LED (from National Star, gold line encapsulated ), RGB 3 in 1 pixel, high contrast ratio, wide viewing angle, horizontal & vertical both 140 degree. Viewers can get vivid image at a wider scale

Exquisite & Vivid Image

The display can play 10-bit colors, with 65536 levels gray scale, high refresh rate over 3000HZ, high contrast ratio to play natural, vivid & exquisite image. And the low brightness makes viewers more comfortable to enjoy the outstanding visual feast.

Application

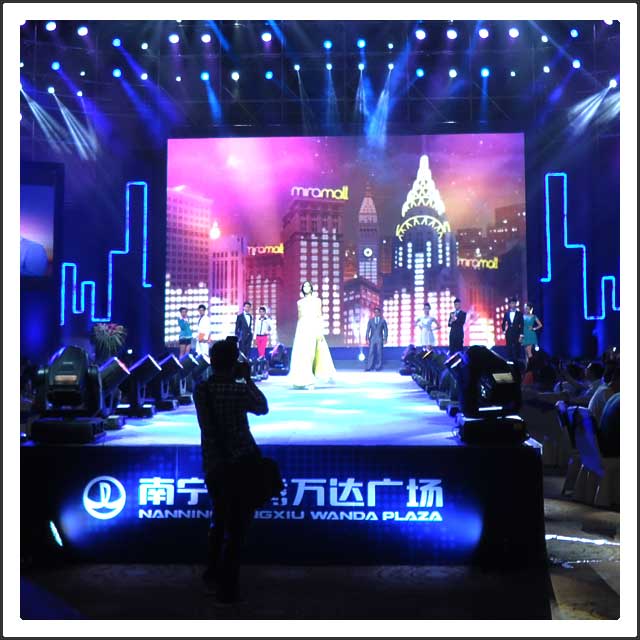

> Stage Background
> Various Trade Show, Exposition, Exhibition
> Official Meetings
> Kinds of Celebration Ceremony, Opening Ceremony
> Wedding - playing image promo, concerning ads, etc.
> Some Banquets, Concerts
> Summit Forum, Press Conference
> Other Events, Campaigns, etc.


Model No.  HTF-RID3 SMD
Pixel Pitch  3mm
Pixel Density 111,111 dots/sqm
LED Tech  SMD2121, RGB 3 in 1, black LEDs
Module Size  192 x 192mm
Module Resolution  64 x 64 pixels
Cabinet Size  576 x 576 x 80mm
Cabinet Frame  Lifting Cabinet
Cabinet Material  Die Casting Aluminum
Cabinet Resolution 192 x 192 pixels
Cabinet Weight  10 KG/pc
Brightness  1200 nits (cd/sqm)
Brightness Controlling  Manual 256 levels, Auto 8 level
Driving Mode 1/32 scan, constant current driving
Refresh Rate  >3000 HZ, high refresh rate
Frame Rate  60 HZ
Grey Scale  65536 level
Display Colors  10-bit colors
Viewing Distance  2 ~ 300 meters
Viewing Angle  Hor. 160; Ver. 160
Protection Grade Front IP34; Back IP34, no water proof
Power Input  AC110V 60HZ / AC220V 50HZ, 10% more or less
Power Consumption  Max.1400w/sqm Aver. 480w/sqm
Working Temp.  -30 Celsius ~ +50 Celsius
Working Humi. 10% ~ 90%
Maintenance Rear access, replace fault components
Signal Input  AV, S-Video, VGA, DVI, HDMI, SDI, DP (use Video Processor)
Controlling Distance  CATE 5 < 100 mts; SMF < 10 KM;
3G, 4G controlling no distance limitation
MTBF > 5000 Hours
LED Life Span  100,000 Hours
The parameters are for reference only. There will be a little difference due to different hardware disposition. All rights are reserved to Hangel Technology
