High Quality LEDs
SMD2121, black LED, RGB 3 in 1 pixel, high contrast ratio, wide viewing angle, horizontal & vertical both 160 degree. Viewers can get vivid image at wider scale
Special Designed Cabinet
>Standard steel cabinet, strong, firm and flat, prevent distortion during shipping and installing. Make sure the whole screen is flat & tidy.
>More accurate mechanically dimensions make sure all cabinets joint tight and seamless to play good & uniform image.
>Small size cabinet unit, slim & light body, easy for installing, dismantling & removing.
Outstanding Image Quality
The display can play 10-bit colors, with 65536 gray scale, high refresh rate over 3000HZ, high contrast ratio to play natural, vivid & exquisite image. And the low brightness makes viewers more comfortable to enjoy the outstanding visual feast.
Rich Controlling Solutions
Many mature controlling solutions are optional. 3G, 4G, WIFI, group cloud controlling are available. Camera, cable TV, the 2nd development docking with other devices are optional. There is always a solution suitable for situation needing;
Top-Brand Components are used to make sure the reliable quality, National Star LEDs, MW power supply, MBI driving IC, branded cooling fan, pure copper wires & cables, etc.
Safe & Easy for Maintenance
DC power low voltage module connection, makes sure the maintenance is easy and safe. All the PCB is covered by conformal coating. It is water proof & insulated in some extent and helpful for heat dissipation; All cables are wired inside, no cable is outside. The whole screen is tidy & safe. Naked installing is ok;

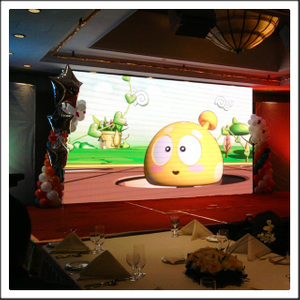

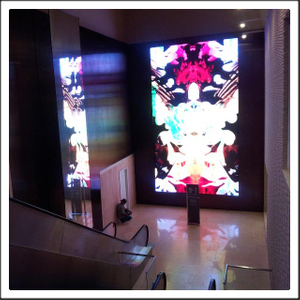

> Indoor Advertising - installed in kinds of shopping mall, super market, hotel, senior club, playing kinds of appointed ads, promotional information, etc. No matter it is video, flash, picture or text messages;
> Government & Enterprise Project - playing image promo, local cultures, landscape, etc.
> Culture & Tourism - playing information of landscape, interesting places, historic sites, local stories, culture, interesting manners and customs;
> Sport Matches - live broadcasting kinds of matches, events, posting the scores, etc.
> Image Propaganda - playing image promo, concerning ads, etc.;
> Commercial Real Estate - using as giant video wall to play concerning information comprehensively;
> Multimedia Meeting Room - installed as large multi-media video wall, playing the wanted video, pictures, etc. accordingly;
> Security & Protection - installed as giant monitor screen in central controlling room, monitoring all the situation of every camera real time.
| Model No. || HTF-ID3 SMD |
| Pixel Pitch || 3mm |
| Pixel Density || 111,111 dots/sqm |
| LED Tech || SMD2121, RGB 3 in 1, black LEDs |
| Module Size || 192 x 192mm |
| Module Resolution || 64 x 64 pixels |
| Cabinet Size || 576 x 576 x 120mm |
| Cabinet Frame || standard close cabinet / simple cabinet / module installing |
| Cabinet Material || Steel (aluminum cabinet optional) |
| Cabinet Resolution || 192 x 192 pixels |
| Cabinet Weight || 15 KG/pc |
| Brightness || 1200 nits (cd/sqm) |
| Brightness Controlling || Manual 256 levels, Auto 8 level |
| Driving Mode || 1/32 scan, constant current driving |
| Refresh Rate || >3000 HZ, high refresh rate |
| Frame Rate || 60 HZ |
| Grey Scale || 65536 level |
| Display Colors || 10-bit colors |
| Viewing Distance || 2 ~ 300 meters |
| Viewing Angle || Hor. 160; Ver. 160 |
| Protection Grade || Front IP34; Back IP34, no water proof |
| Power Input || AC110V 60HZ / AC220V 50HZ, 10% more or less |
| Power Consumption || Max.1400w/sqm Aver. 480w/sqm |
| Working Temp. || -30 Celsius ~ +50 Celsius |
| Working Humi. || 10% ~ 90% |
| Maintenance || Rear access, replace fault components |
| Signal Input || AV, S-Video, VGA, DVI, HDMI, SDI, DP (use Video Processor) |
| Controlling Distance || CATE 5 < 100 mts; SMF < 10 KM; |
3G, 4G controlling no distance limitation
| MTBF || > 5000 Hours |
| LED Life Span || 100,000 Hours |
| The parameters are for reference only. There will be a little difference due to different hardware disposition. All rights are reserved to Hangel Technology |
